Standard 120VAC Electric Roller Motor Kit 10NM 16rpm CL835-1016


Ask a Question

$178.00
Sale: $163.76
Save: 8% off

Add to Cart:

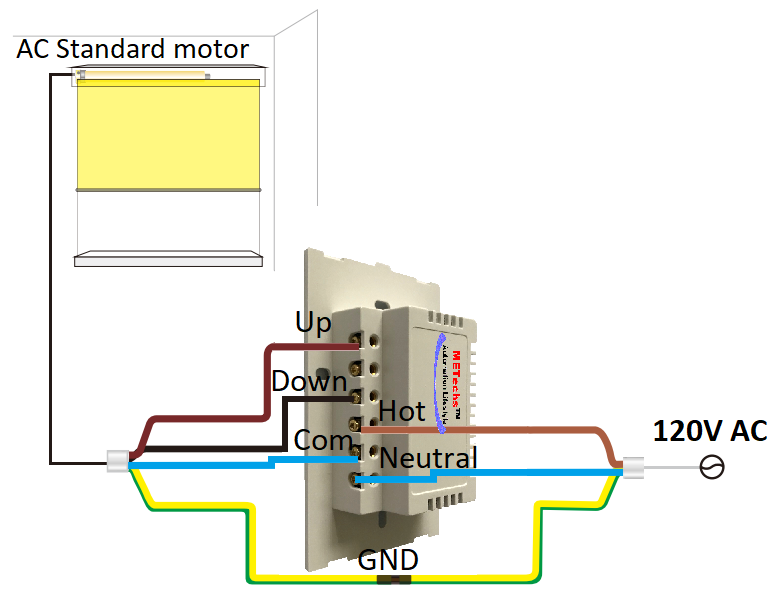

The motor kit comes with mount brackets, crown, drive wheel, and idler. It is a great choice for roller shades or blinds, electric projector screens, awnings, electric Austrian curtains, skylights, electric floor to ceiling openers, and many other similar applications. It is very easy to be controlled by METechs Smart Wi-Fi Touch Wall Switch(is sold separately) with a smartphone or voice command.

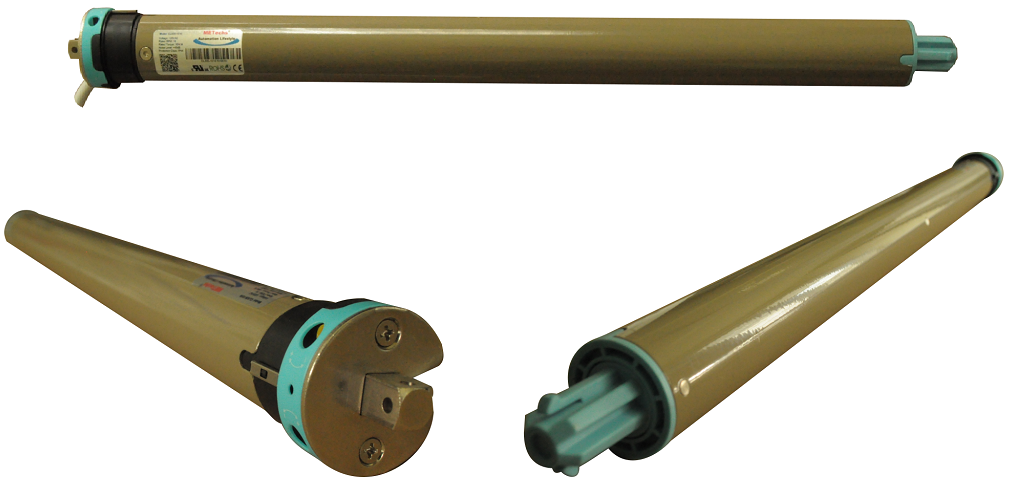

METechs Radio Tubular Electric Motors CL835-1016
CL800-DWS Polarity Reverse DC Motor Control Switch
Features
  • Compact design with the motor, transmission box, and limit switches all in one tube
  • The motor can be controlled (but does not come with any of these control devices) by wall switch, infrared remote, or radio frequency controller, timer, wind-rain-optical sensor controller, timer, and any other ac motor controllers
  • Mounted on both ceiling and wall, or any other angled surface
  • Group or individual control to run all motors simultaneously or individually
  • Easily install with precise upper and lower positions
  • Upper/lower positions will remain even if power is off
  • Motor runs quietly and keeps silent on standby
  • Safe and reliable with overheat protection
Specifications
  • Operation voltage: 120V AC, 60Hz
  • Operation power: 115W
  • Rated Current: 1A
  • Protection Class: IP44, Class H
  • Rated RPM: 16
  • Rated Torque: 10N.M
  • Noise Level <45dB
  • Minimum width: 22"
  • Working tube size: 2" (50mm)
  • Maximum load with 2" (50mm) tube < 88 lbs (40 Kgs)
Package Content
  • One tubular motor CL835-1016
  • mount brackets
  • Selected drive wheel kit (crown, drive wheel, and idler)
  • Instruction booklet

Frequently Bought Together

Note: We offer completed sets of made-to-order motorized roller shades. We cut your chosen fabric to your given size and attach it to rod and bottom weight bar. It is ready to go kit. You just install it with simple tools. We have a range of light and privacy controlled options of fabric as well as colors and textures. Click the link to see the choices of fabric. One Motor kit can operate two or more rods when using the joiners. Contact us for custom motorized roller shade kit.
