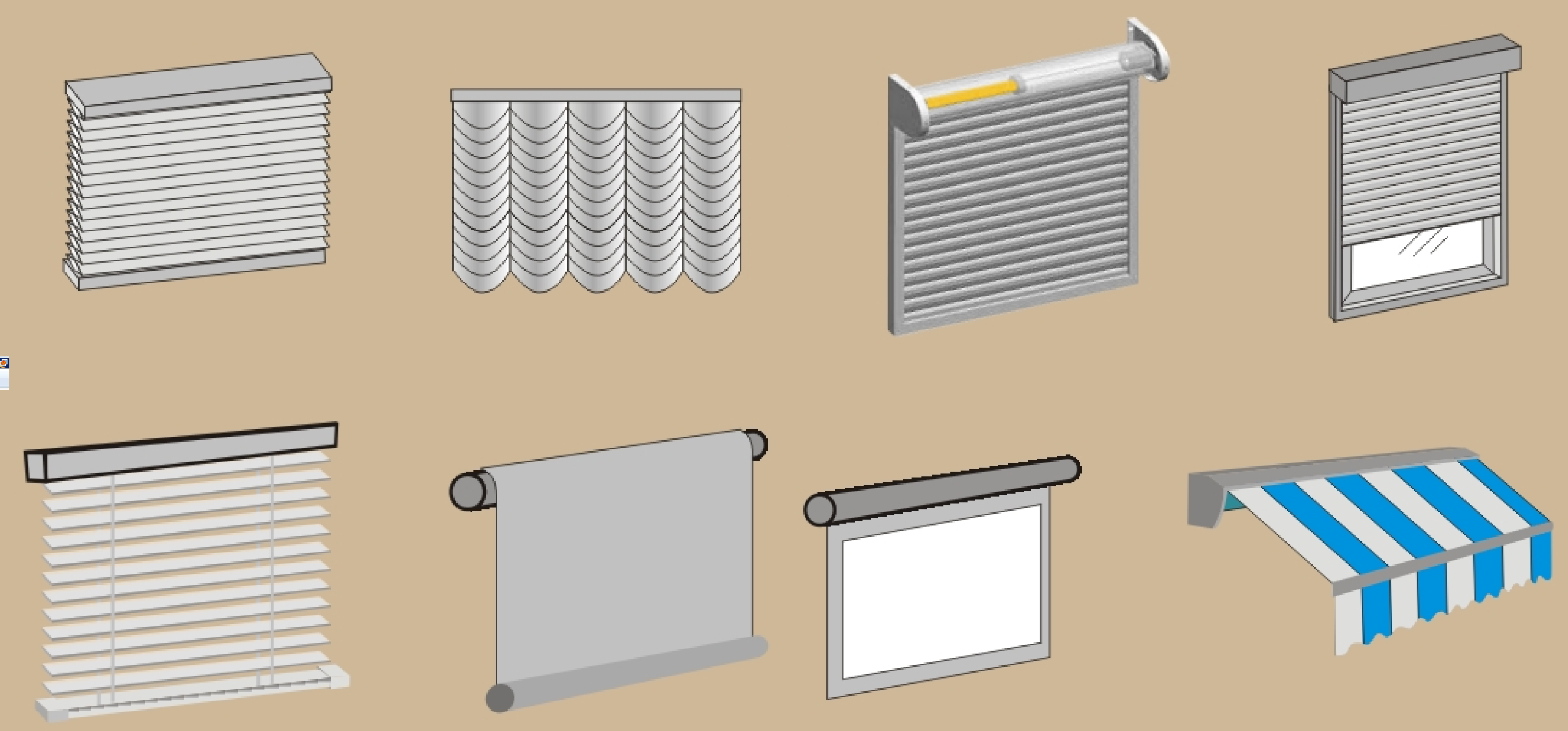

The programmable electric tubular motor kit CL635E-0628 (120V AC 6Nm 28rpm) features slim installation gap for large roller shades or blinds, electric projector screens, motorized shutters, electric Austrian curtains, and many other middle or heavy duty rolling applications.
Features

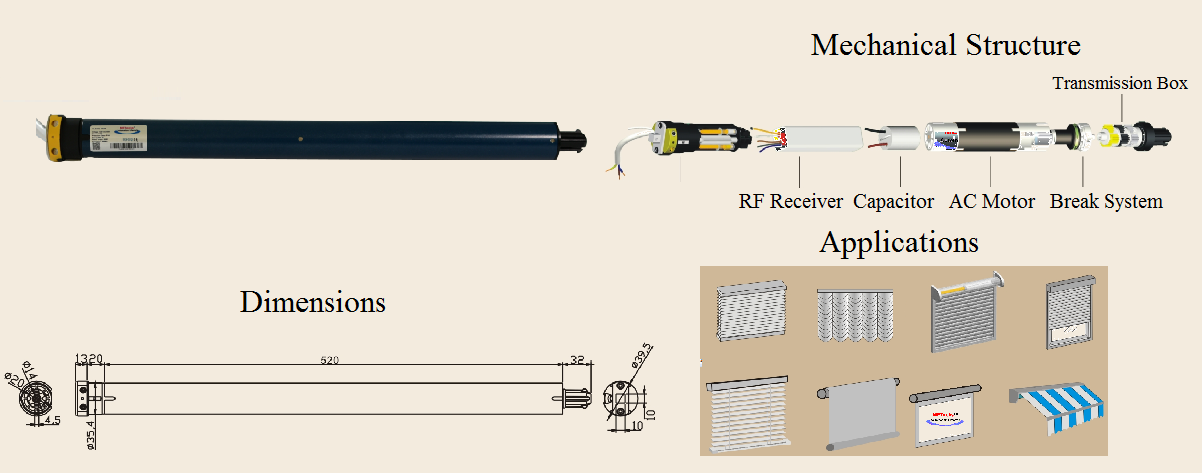

- Compact design with motor, transmission box, RF receiver, and controller all in one tube

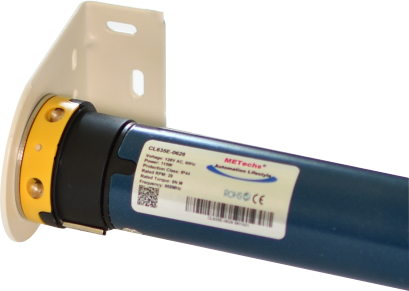

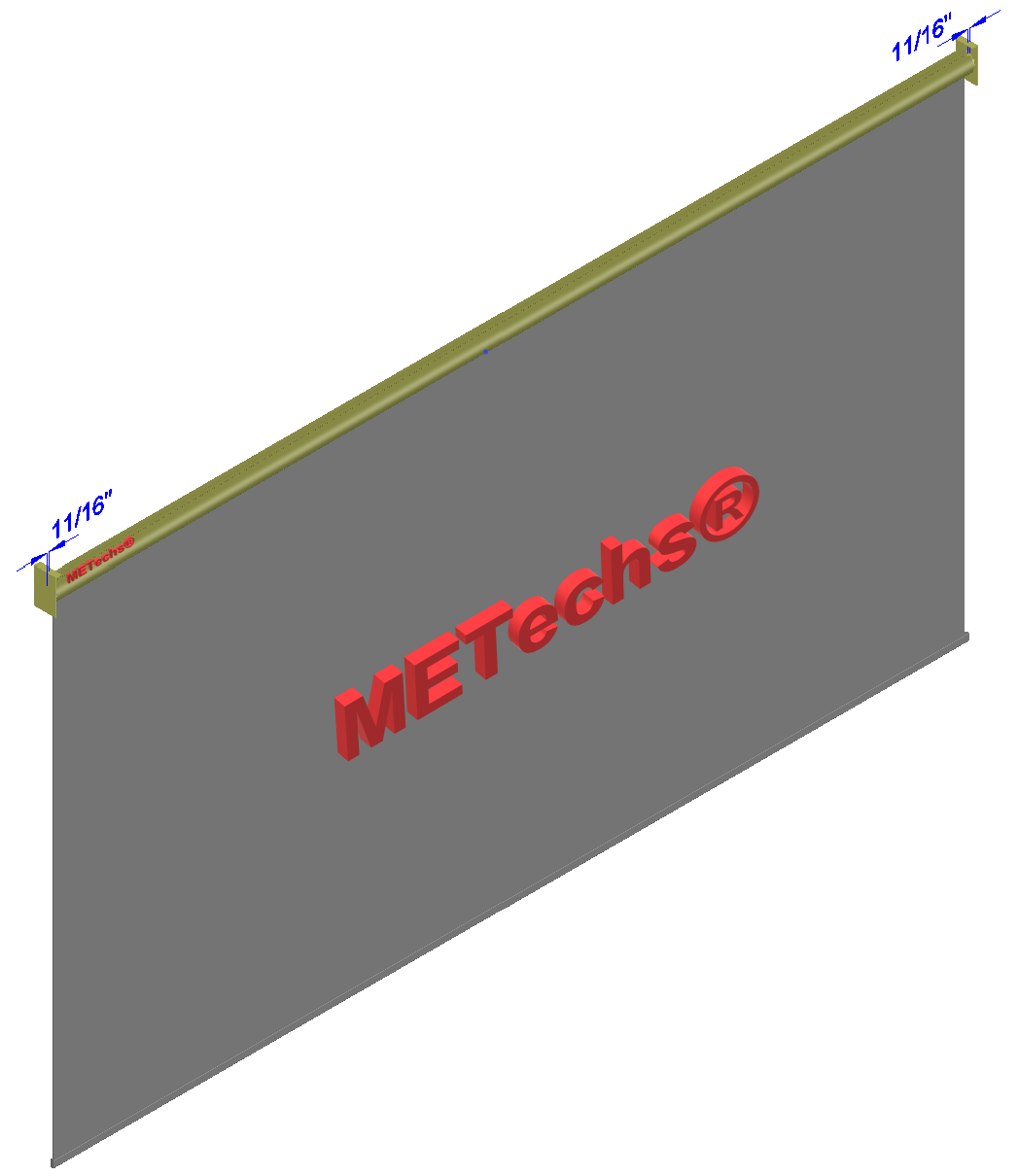

- Slim design prevents sunlight from coming through the installation gap (11/16" on each side)
- Programmable electronic upper/lower positions
- Stops at any position by pressing "STOP" button
- Can be mounted on ceiling, wall, or any other angled surface
- Motor runs quietly and remains silent on standby
- Group control to run multiple motors up or down simultaneously or individually
- Double hall feedback sensor for precise position
- Safe and reliable with over heat protection
Specifications
- Operation voltage: 120V AC, 60Hz
- Operation power: 115W
- Protection Class: IP44, Class H
- Rated RPM: 28
- Rated Torque: 6N.M
- Frequency: 868MHz
- Noise Level <45dB
- Maximum load <42.4 lbs (19.2kg)
Package Content
- One tubular motor CL635E-0628
- One RF remote
- Mount brackets
- Instruction booklet
Frequently Bought Together
Note: We offer completed sets of made-to-order motorized roller shades, golf impact screens, and garage door screens. We cut your chosen fabric, rod, and bottom weight bar to your given size. It is ready to go kit. You just install it with simple tools. We have a range of light and privacy controlled options of fabric as well as colors and textures. Click the link to see the choices of fabric. One Motor kit can operate two or more rods when using the joiners. Contact us for custom motorized roller shade kit.
